Product data sheet
Operation and maintenance
Rewind Neck - Bridge
LUBE INDUSTRIES Srl Via dell’industria, 4 - Treia (MC)

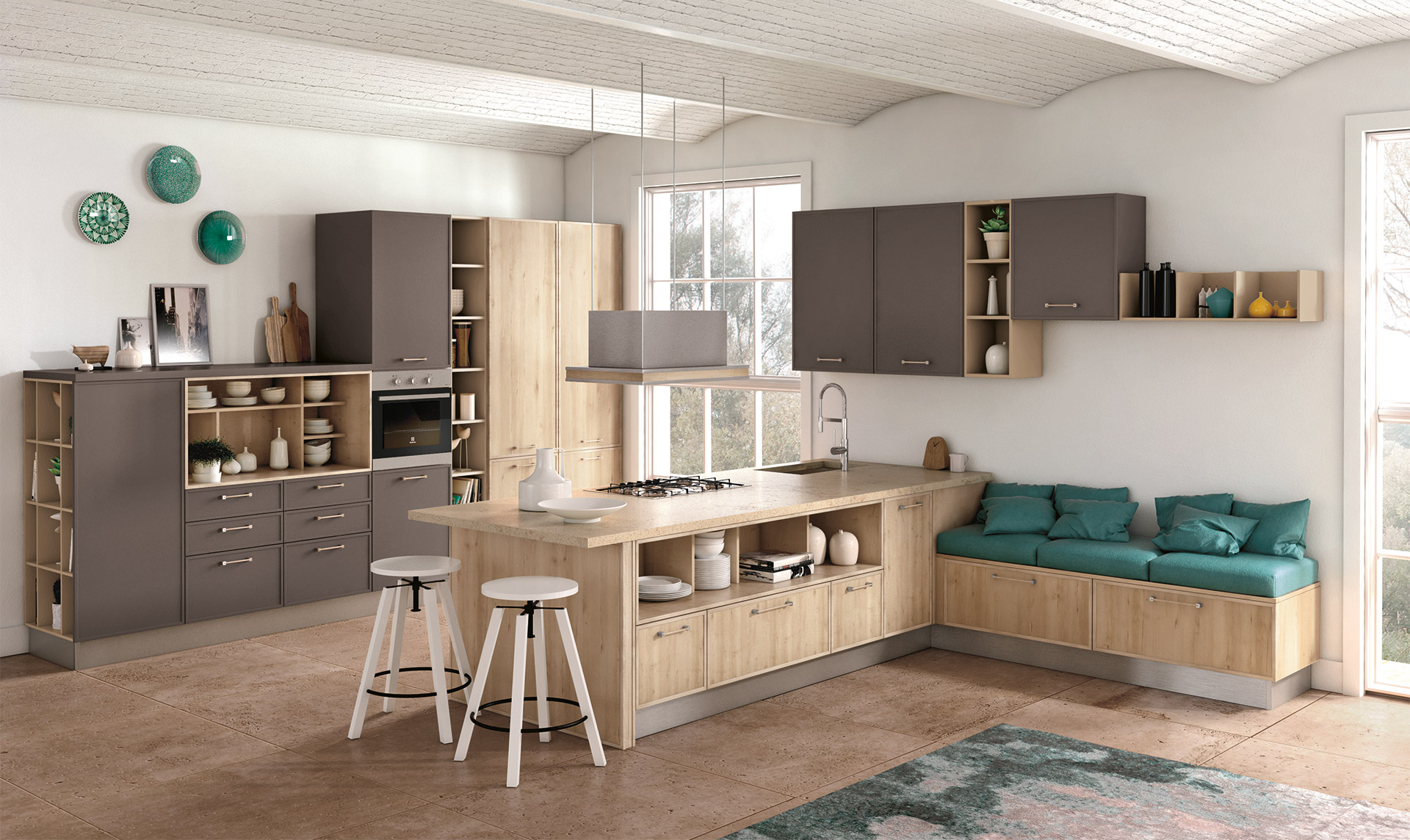

Kitchen cabinets, REWIND NECK - BRIDGE model.
This product data sheet complies with the specifications set out by Italian Legislative Decree no. 206 dated 6th September 2005 "Consumer Code".
Door consisting of an 18 mm thick chipboard panel (class E1), vertical grain, in the finishes: Crete Grey Ash, Powder Pine, Pine Polar, Walnut Brown, Natural Beech, Striped Grey Oak, and a 22 mm thick solid European ash frame with open-pore finish, glued to the panel with vinyl glue and silane glue containing no solvents or isocyanates.
As doors.
Door consisting of an 18 mm thick, medium-density fibre panel (class E1) and a 22 mm thick frame, pantographed on the upper part of the door. The entire door is lacquered in a micro-structured opaque finish in various colours.
As doors.
The frame is a 22 mm thick, extruded aluminium profile, in a titanium or brill finish. A 4 mm thick, satin-finish tempered glass pane, bronzed and semi-transparent or painted on the inside with various water-based colours, is mounted on the upper part.
Door consisting of a 22 mm thick, medium-density fibre panel support (class E1), painted with acrylic colours on a material surface obtained from a combination which allows maximum moisture vapour transmission, formed of lime, marble powder and the related adhesion promoters. The decoration is obtained with the transparency overlapping technique and is protected by several coats of transparent polyurethane. Since this paint is applied entirely by hand, each door is unique.
ONLY AVAILABLE FOR CERTAIN ITEMS
In aluminium with "L"-shaped section, brushed finishes in the following colours: stained titanium, stained Urban and brill finish; matt powder-coated in the following colours: total white, warm white, beaver, ash, clay, smoke, Bromine grey, black, cornflower blue, cadet blue, bistro, lichen green, Positano green, water green, sage, aquamarine, amber, pink quartz and Tuscan red.
In aluminium or zamak alloy with galvanic bath in the satin titanium, satin steel, opaque chrome, satin nickel finishes, with insert lacquered the same as the door.
Consisting of 18 mm thick melamine-faced chipboard panels in accordance with the US EPA TSCA Title VI standard (with very low formaldehyde emission).
The shelves are 18 mm thick and equipped with built-in shelf supports with locking device. They can also be made of tempered glass (6 mm thick), grounded on the edges.
Edge in ABS or Polypropylene (PP) glued with thermosetting polyurethane glues 1 mm thick on the front parts of the unit sides and shelves and 0.5 mm thick on the lower and upper parts of the unit sides and on the sides and rear part of the internal shelves. Made of paper for the non-visible parts of furniture (back).
Consisting of 2.8 mm thick high-density fibre panels compliant with E1 and US EPA TSCA Title VI for formaldehyde emissions, wall units with polypropylene veneers and painted bases and columns.
Laminate worktop: 38 or 58 mm thick water-repellent wood particle board coated with high pressure laminate (HPL). For worktops in other materials, please refer to the "Useful information" section.
In sheet 18/10 stainless steel made using a single-casting or electrically welded tubs, with a smooth or "embossed" finish. For sinks in other materials, please refer to the "Useful information" section.
Faced bracket: melamine faced wood particle board panel (class E1); ABS edging.
Veneered bracket: wood particle board panel (class E1) veneered with "slices" of wood (which vary depending on the model) and lacquered using acrylic/polyurethane products.
In pine wood or MDF (class E1) veneered with "slices" of wood (which vary depending on the model); acrylic/polyurethane lacquering.
In chequered aluminium or lacquered plastic to protect the sink unit from water seepage.
In knock-resistant plastic material (PVC) and height-adjustable, these are screwed to the bottom of the cabinet using special bushing, without requiring any drilling in the lower part of the casing (thus completely avoiding the creation of areas in which dirt may accumulate or through which water could leak into the base and sink cabinets).
They are also available in aluminium and can be adjusted and mounted on a special base structure (also made using an aluminium profile).
These elements may be made using anodised or lacquered aluminium, or PVC coated with decorative melamine foil, and have a rubber seal at the top and bottom.
In rigid plastic material (PVC), drilled in the centre to allow any leaking water to escape and to protect the main cabinet column.
In aluminium or rigid knock-resistant PVC with laminate decoration.
In sheet steel and zamak alloy, copper-plated and nickel-plated for resistance to corrosion; adjustable in three directions.
The structure may consist of a 16 mm thick wood particle base (extremely low formaldehyde emission) faced in grey laminate with side and back panels in galvanised and lacquered sheet steel for protection against corrosion. Alternatively the structure can be made entirely of solid ash and plywood; sliding takes place by means of total extraction runners with a grooved system for anti-detachment locking and automatic closure which is activated in the final 4 cm. The soft-close system (blu-motion) is also supplied as standard.
In electrically welded metal wire; they may be plasticised with polymer resin, nickel-plated or chrome-plated and coated with a transparent plastic sheath (Crominox finish).
Top: may be a wood particle panel (class E1) coated with HPL plastic laminate (see laminate worktop) or veneered with "slices" of wood and lacquered with water-based, polyurethane or acrylic shades, or it may be made using glass, granite or natural stone.
Borders and base structure: these may be made using metal or plywood panels, faced or veneered with "slices" of wood (these vary depending on the model).
Legs: these may be made using metal or solid wood; lacquering is carried out using acrylic/polyurethane products.
Structure: this may be in tubular metal lacquered with thermosetting powders, or in solid wood lacquered using water-based (impregnating) and acrylic/polyurethane products (base).
Seat and Backrest: these may be made using synthetic material (methacrylate), solid wood, plywood, upholstered fabric or simulated wicker.
Note: each type of chair or table is identified at the site of purchase by the relevant adhesive label on the packaging.
For further information, please check the user and maintenance manual provided by GRUPPO LUBE.
